Product Description
Pipeline High Shear Dispersing Emulsifier

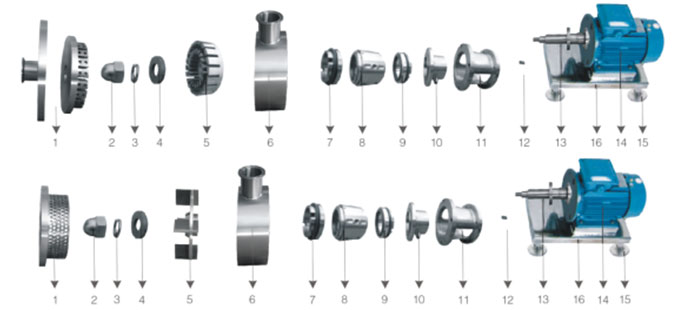

1.Stator 2.Scrwe cap 3.Flexible gasket 4.Flat gasket 5.Rotor 6.Pump cavity 7.Mechanical seal (stationary) 8.Mechanical seal(moving ring) 9.Mechanical seal(stationary) 10.Seal cool seat 11.Pump seat 12.Pin 13Pump shaft 14.Motor 15.Suppirt 16.Frame
Working principle
The pipeline type high-shear dispersion emulsifier is a piece of high performance equipment used for continuous production or circulating processing of fine materials. Inside the narrow space of its chamber, it is mounted with 1-3 groups of dual-geared multilayer stators and rotors. The materials are sucked into the chamber by the strong axial suction produced by the fast-turning rotor driven by the motor. Within the shortest time, the materials will be processed by the operation of dispersion, shearing and emulsification, after which the size distribution will be within a narrow range, and the finished products will be fine and stable for a long period.
Applications
Fine chemical industry: pigment, glue, sealant, resin emulsifying, disinfectant, coagulation agent
Petrochemical industry: lubricating grease, diesel oil emulsifying, asphalt modifying, catalyst, paraffin emulsifying
Biopharmaceutical industry: injection, antibiotic, ointment, biological agent, microcapsule emulsifying, sugar-coat
Paint & ink: printing ink, emulsion paint, architectural coating, automotive paint, paint additives
Pesticide: disinfectant, seed coating agent, herbicide, pesticide emulsion, fertilizer, bio-pesticide
Nanomaterials: nanomaterials dispersion and depolymerization, reaction and extraction of nano products
Food industry: fruit juice, jam, jelly, ice cream, dairy products, additives, tea beverage
Daily chemical products: detergent, shampoo, face cream, lipstick, cleanser, daily fragrance
Pulp & paper: pulp, adhesive, rosin emulsion, paper additives, resin emulsion

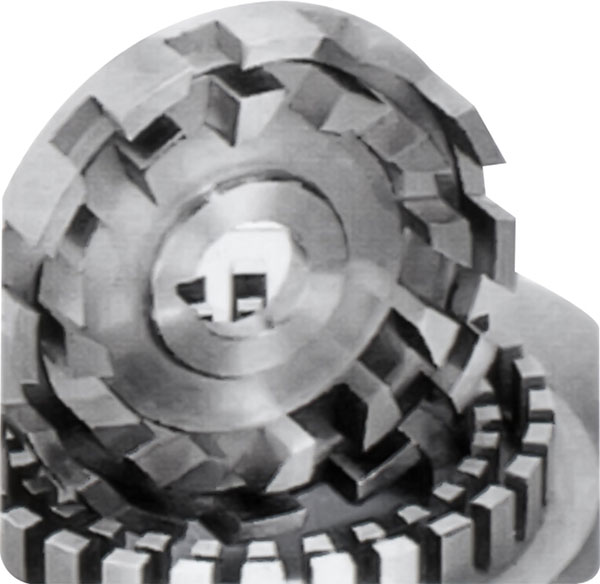

Rough teeth
beat, shatter,shear, dissolve, rough disperse

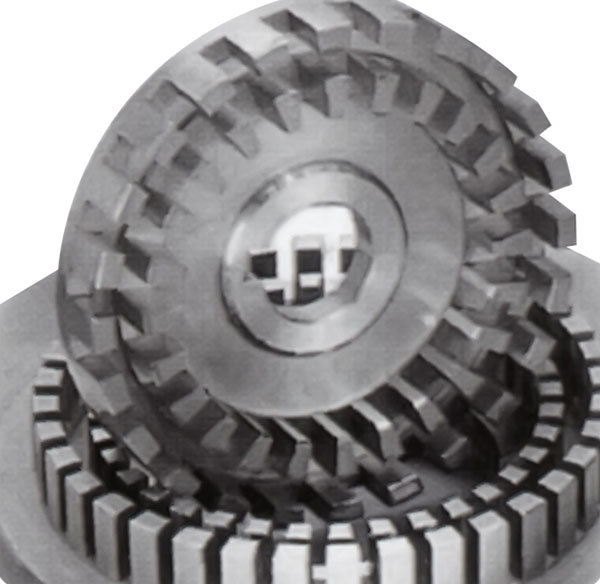

Middle teeth
Disperse, refine, solutize, emulsify

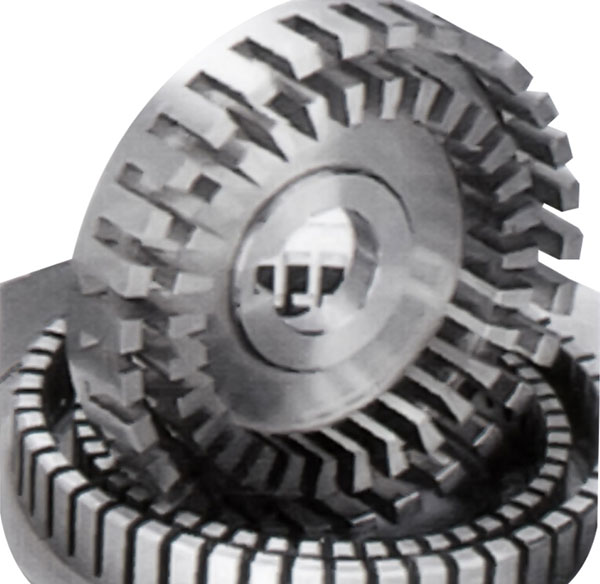

Fine teeth
superfine disperse, emulsify, homogenize, pulpify
